Luna - Catenary

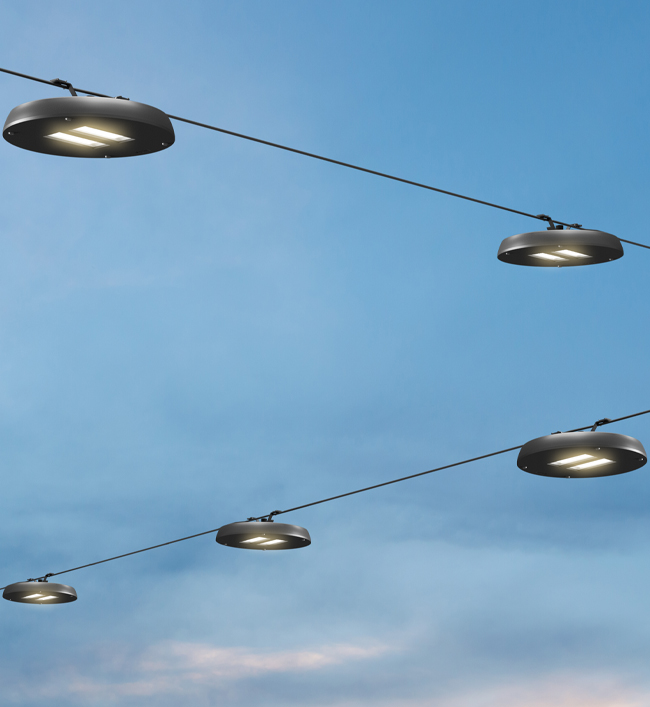

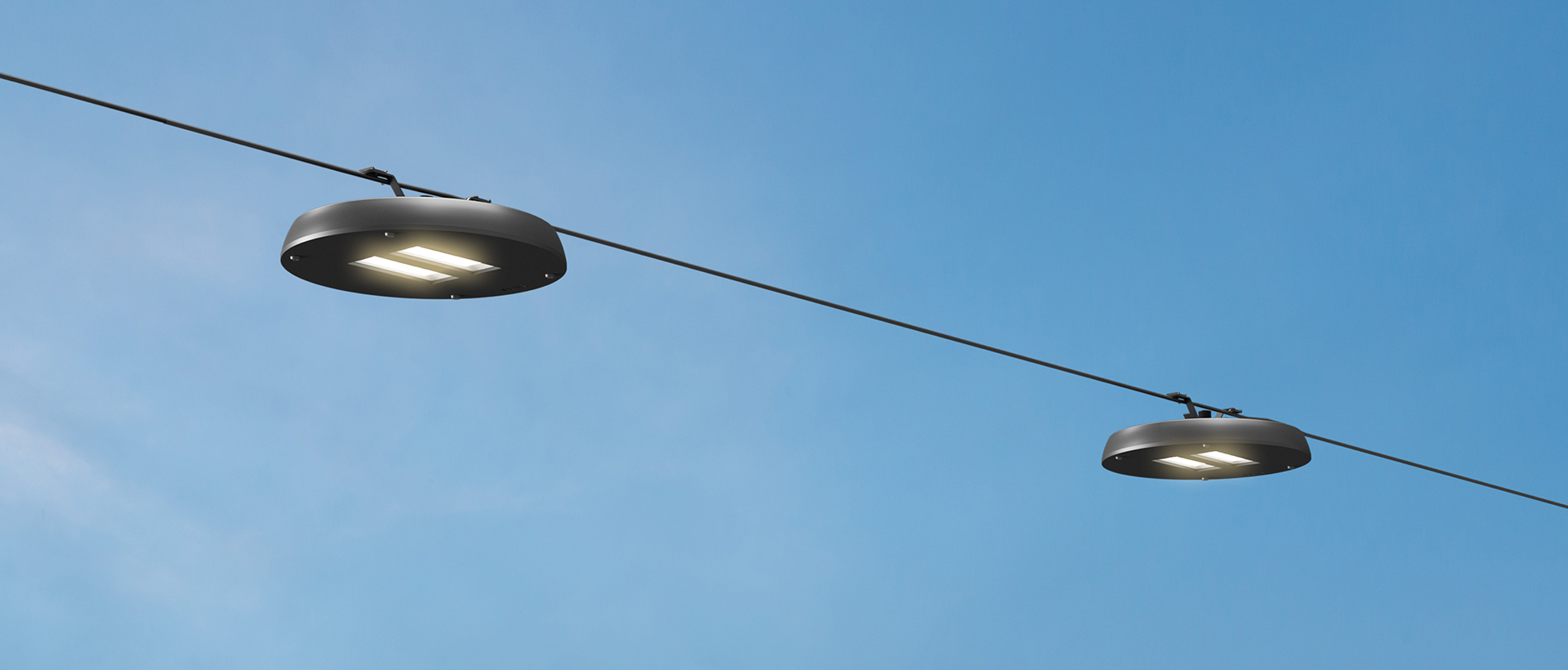

A sleek, modern luminaire designed for precision and drama. Suspended gracefully on cables, the Luna Catenary directs light exactly where it's needed creating focused illumination while leaving surrounding areas in shadow, creating a beautiful and dramatic effect. It can be used to guide pedestrians, providing a sense of safety and security

Material
Body : Pressure die cast aluminium
Impact Protection : IK08
Ingress Protection : IP65
Diffuser : Clear toughened glass of 5mm thickness
Lens : Polycarbonate optical lens
Gasket : Silicone compression gasket
Glare Control : Slight regress in the optical assembly for better glare control

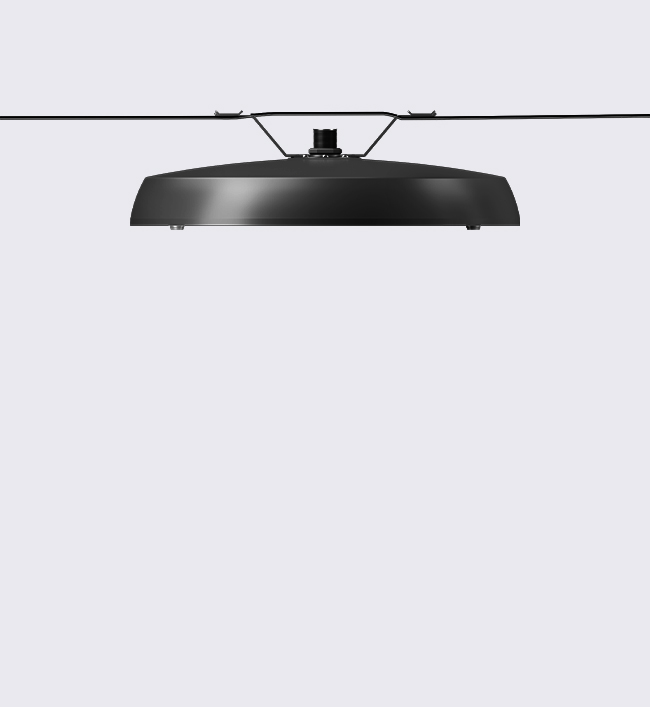

Mounting : Suitable for mounting on Stainless Steel Rope Ø6mm

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV

Product Configurations
Wattage : 50W / 100W
Light Distribution : Type II / Type III / Type IV
CCT : 3000K / 4000K / 5700K
LED Life Time : L70 B10 1,00000 H

Area Of Application
Shopping centers, Pedstrian areas, Any space requiring high end site.

Available Finish
Pure polyester powder coated
Graphite grey
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

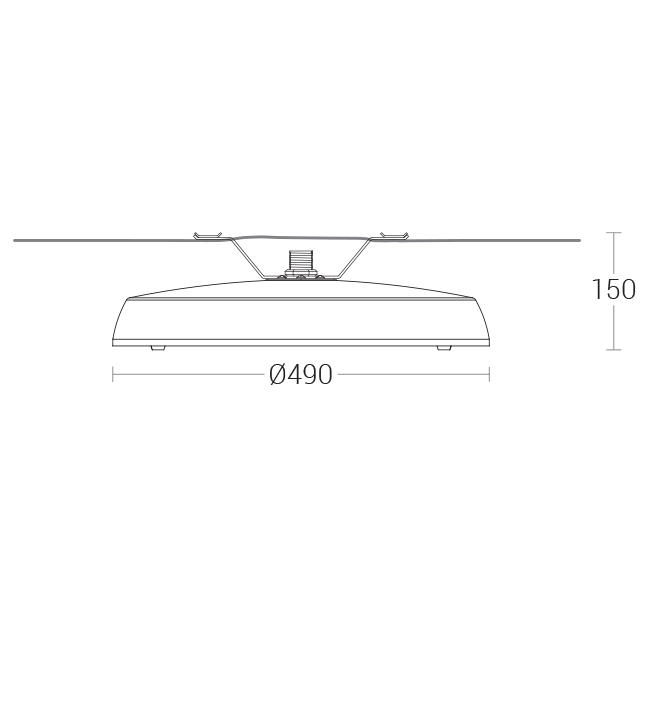

KL-2445650W,100W LED 3000K,4000K,5700K BA:Type II,Type III,Type IV, Clear Toughened GlassØ490 x 150mm24456.pdf
